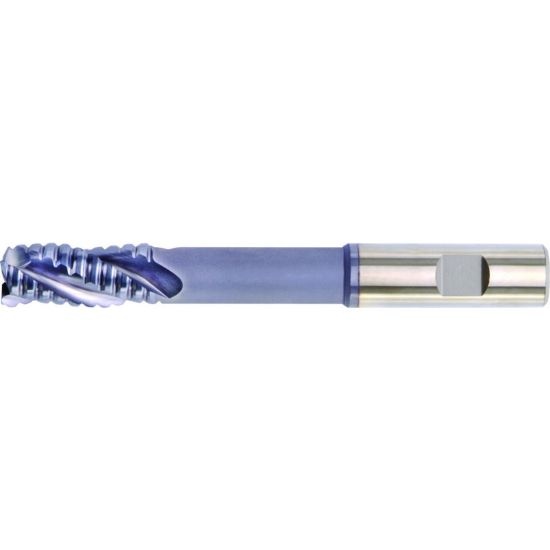

Picture of Hanita/Widia TC6ANR19007 Dia 3/4 SH 2.00 LOC 1.6250 OAL6.2500 End Mill Powder Metal TiCN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia TC6ANR19007 Dia 3/4 SH 2.00 LOC 1.6250 OAL6.2500 End Mill Powder Metal TiCN Single End 45.0° Chamfer Widia Series Mills

Part Number: HANTC6ANR19007 0.750 x 2.000 x 1.625 x 6.250
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1237670
Vendor: Sussex Tool and Supply
$166.29

Description

HANITA/WIDIA 2840007 End Mill Powder Metal TiCN 45.0° Chamfer Chamfer Flutes 3 Single End WIDIA Series Mills Powder Metal Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Powder Metal Rougher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.2500 158.75MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.6250 41.28MM
Neck Length 4.0000 101.60MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Coating TICN
