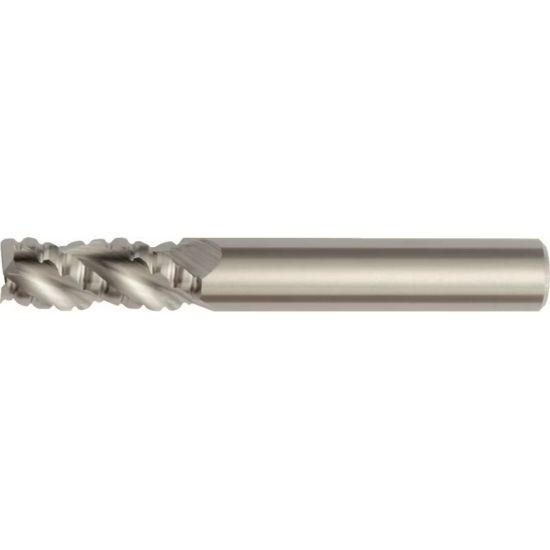

Picture of Hanita/Widia TC4A0R19007 Dia 3/4 SH 2.00 LOC 1.50 OAL4.00 End Mill Carbide TiCN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia TC4A0R19007 Dia 3/4 SH 2.00 LOC 1.50 OAL4.00 End Mill Carbide TiCN Single End 45.0° Chamfer Widia Series Mills

Part Number: HANTC4A0R19007 0.750 x 2.000 x 1.500 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237714
Vendor: Sussex Tool and Supply
$0.00
HANITA/WIDIA 2843025 End Mill Carbide TiCN 45.0° Chamfer Chamfer Flutes 3 Single End WIDIA Series Mills Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Graphite, Aluminum, Plastic
Coating TICN
Mach Side Connection Size 0.7500 19.05MM - 3/4
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
