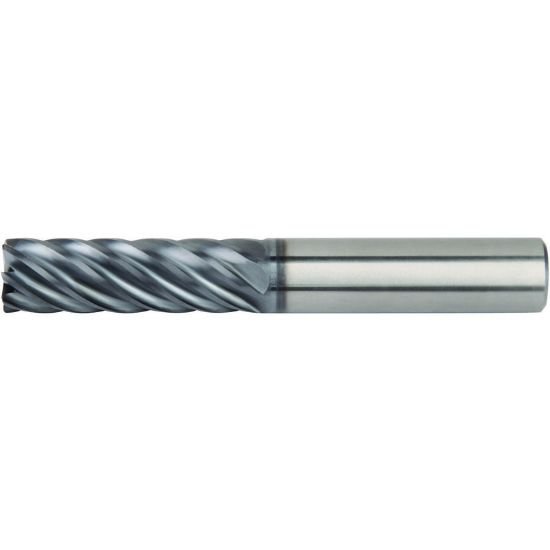

Picture of Hanita/Widia 771E16026T Dia 16mm SH 0.6299 LOC 1.8898 OAL4.3307 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm VariMill III

Hanita/Widia 771E16026T Dia 16mm SH 0.6299 LOC 1.8898 OAL4.3307 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0197 0.50mm VariMill III

Part Number: HAN771E16026T 0.630 x 0.630 x 1.890 x 4.331
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1239555
Vendor: Sussex Tool and Supply
$250.77

Description

HANITA/WIDIA 5978107 Variable Helix End Mill Carbide AlTiN Corner Radius 0.0197 0.50MM Standard Flute Flutes 7 Single End VariMill III Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 7
Tool Dia 0.6299 16.00MM
Length Of Cut 1.8898 48.00MM
Geometry & Angles
Corner Radius 0.0197 0.50MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
