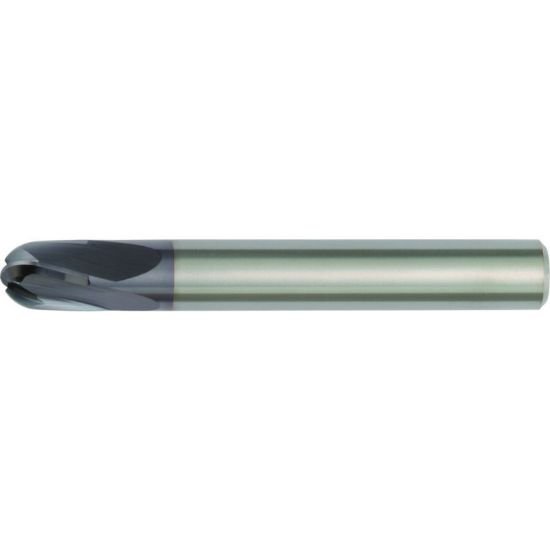

Picture of Hanita/Widia 715003000RT Dia 3mm SH 0.1181 LOC 0.1181 OAL1.4961 End Mill Standard Flute High Helix Carbide TiCN Single End Ball NoseBall Vision Plus

Hanita/Widia 715003000RT Dia 3mm SH 0.1181 LOC 0.1181 OAL1.4961 End Mill Standard Flute High Helix Carbide TiCN Single End Ball NoseBall Vision Plus

Part Number: HAN715003000RT 0.118 x 0.118 x 0.118 x 1.496

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237271
Vendor: Sussex Tool and Supply
$0.00
HANITA/WIDIA 1859882 High Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 4 Single End Vision Plus Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.1181 3.00MM
Overall Length 1.4961 38.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 4
Tool Dia 0.1181 3.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.1181 3.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 15
Center Cutting Center Cutting
Neck Length 0.1181 3.00MM
