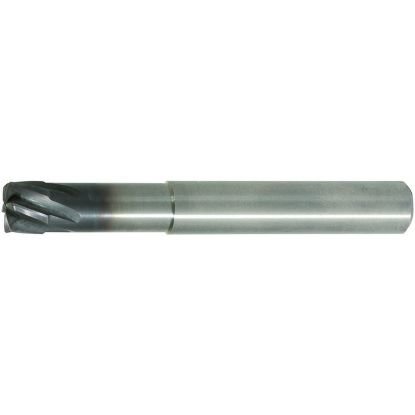

Picture of Hanita/Widia 70NS08003 Dia 8mm SH 0.3150 LOC 0.0165 OAL2.9921 End Mill Carbide AlTiN Single End High Feed0.0197 0.50mm Vision Plus X-Feed

Hanita/Widia 70NS08003 Dia 8mm SH 0.3150 LOC 0.0165 OAL2.9921 End Mill Carbide AlTiN Single End High Feed0.0197 0.50mm Vision Plus X-Feed

Part Number: HAN70NS08003 0.315 x 0.315 x 0.017 x 2.992
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1240184
Vendor: Sussex Tool and Supply
$129.15

Description

HANITA/WIDIA 6441883 End Mill Carbide AlTiN High Feed 0.0197 0.50MM Flutes 6 Single End Vision Plus X-Feed Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 2.9921 76.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 6
Tool Dia 0.3150 8.00MM
Length Of Cut 0.0165 0.42MM
Neck Length 0.9350 23.75MM
Geometry & Angles
Corner Radius 0.0197 0.50MM
Helix Angle 20
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
