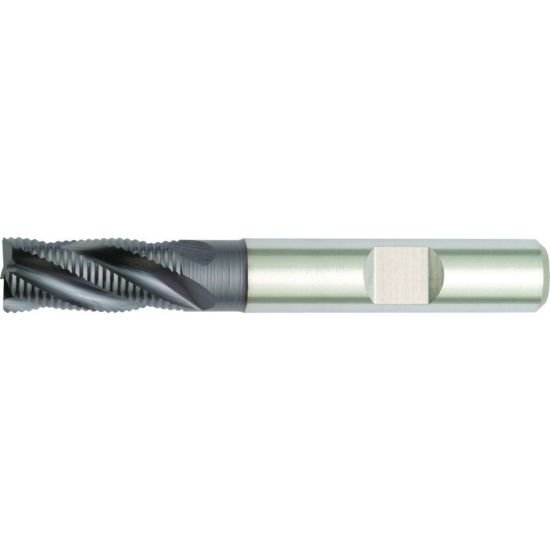

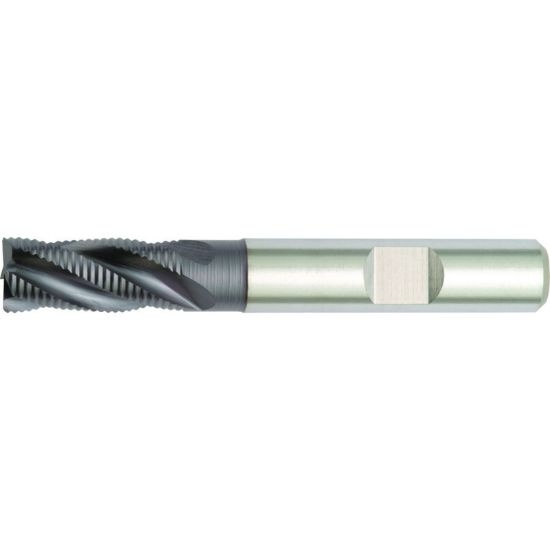

Picture of Hanita/Widia 6N0622007LW Dia 22mm SH 0.7874 LOC 1.4961 OAL4.0945 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia 6N0622007LW Dia 22mm SH 0.7874 LOC 1.4961 OAL4.0945 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Part Number: HAN6N0622007LW

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HANITA/WIDIA
SKU: 1237203
Vendor: Sussex Tool and Supply
$0.00
The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.7874 20.00MM
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating High Performance
Center Cutting Center Cutting
Overall Length 4.0945 104.00MM
Machine Side (Toolpost) WELDON0.7874
Cutting Edge Definition The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, it is still wear-resistant and has a high hot hardness., but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however
Length Of Cut 1.4961 38.00MM
End Of Tool Shape Corner Chamfer
Cutter Style Powder Metal Fine Rougher
Inch Or Metric Metric
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 5
Shipping State OHIO
Family Group WIDIA Series Mills
Single Or Double End Single End
Cutting Edge Material Powder Metal
Tool Material Powder Metal
Mach Side Connection Size 0.7874 20.00MM
Coating TiAlN
Tool Diameter 0.8661 22.00MM
Coolant Thru Non Coolant
Helix Angle 30°
Made In USA YES
