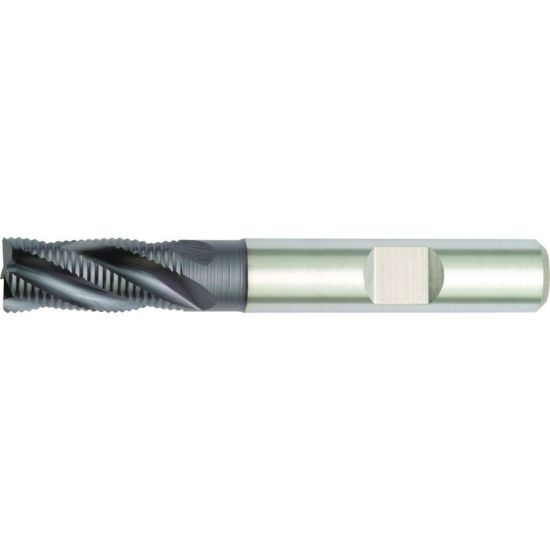

Picture of Hanita/Widia 6N0614005LW Dia 14mm SH 0.4724 LOC 1.0236 OAL3.2677 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia 6N0614005LW Dia 14mm SH 0.4724 LOC 1.0236 OAL3.2677 End Mill Powder Metal TiAlN Single End 45.0° Chamfer Widia Series Mills

Part Number: HAN6N0614005LW 0.551 x 0.472 x 1.024 x 3.268
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1237200
Vendor: Sussex Tool and Supply
$155.15

Description

HANITA/WIDIA 1660437 End Mill Powder Metal TiAlN 45.0° Chamfer Chamfer Flutes 4 Single End WIDIA Series Mills Powder Metal Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Powder Metal Fine Rougher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.2677 83.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Tool Dia 0.5512 14.00MM
Length Of Cut 1.0236 26.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Coating TiAlN
