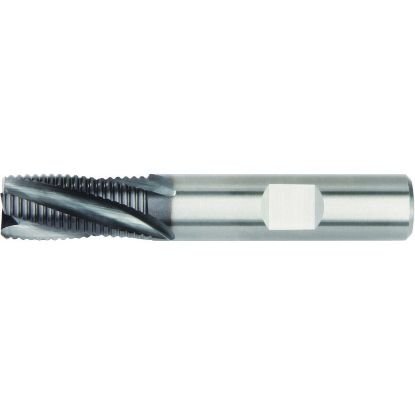

Picture of Hanita/Widia 4S0R16006NW Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Carbide AlTiN Single End 45.0° Chamfer Widia Series Mills

Hanita/Widia 4S0R16006NW Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Carbide AlTiN Single End 45.0° Chamfer Widia Series Mills

Part Number: HAN4S0R16006NW 0.625 x 0.625 x 1.250 x 3.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1238789
Vendor: Sussex Tool and Supply
$220.12

Description

HANITA/WIDIA 5577392 End Mill Carbide AlTiN 45.0° Chamfer Chamfer Flutes 4 Single End WIDIA Series Mills Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.2500 31.75MM
Neck Length 1.2500 31.75MM
Geometry & Angles
Helix Angle 20
Performance & Capacity
Cut Rating Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
