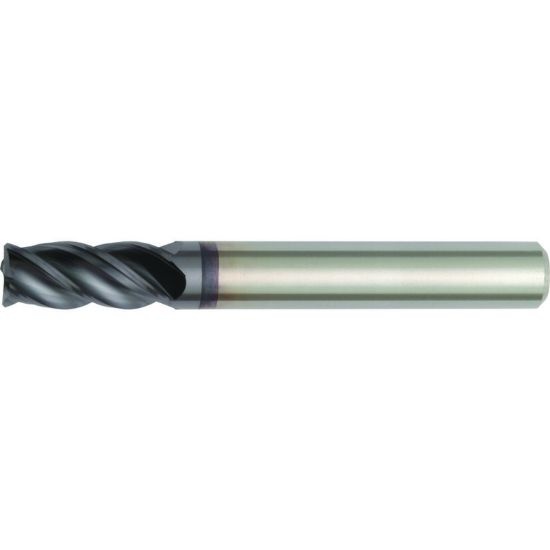

Picture of Hanita/Widia 477704002LT Dia 4mm SH 0.2362 LOC 0.4724 OAL2.1654 End Mill Standard Flute High Helix Carbide TiCN Single End 45.0° Chamfer VariMill

Hanita/Widia 477704002LT Dia 4mm SH 0.2362 LOC 0.4724 OAL2.1654 End Mill Standard Flute High Helix Carbide TiCN Single End 45.0° Chamfer VariMill

Part Number: HAN477704002LT 0.157 x 0.236 x 0.472 x 2.165
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1237325
Vendor: Sussex Tool and Supply
$34.59

Description

HANITA/WIDIA 1920424 High Helix End Mill Carbide TiCN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End VariMill Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.1654 55.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.1575 4.00MM
Length Of Cut 0.4724 12.00MM
Geometry & Angles
Helix Angle 38
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
