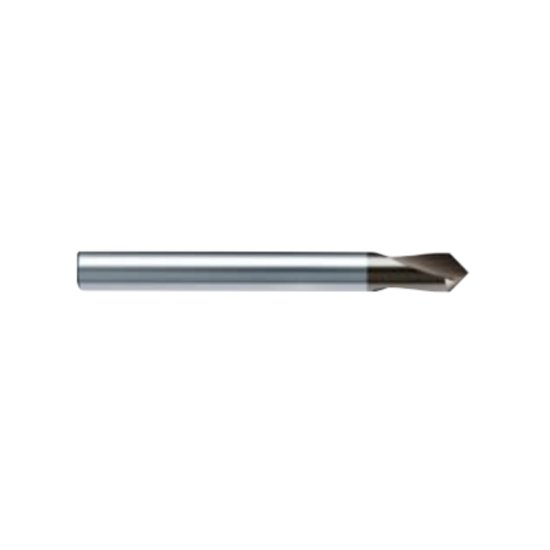

Picture of HAM TFR332-0500 TA 5.00mm Solid Carbide NC Center Drill, 2 Flutes, TA Coated

HAM TFR332-0500 TA 5.00mm Solid Carbide NC Center Drill, 2 Flutes, TA Coated

Part Number: TFR332-0500 TA
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1130352

Description

HAM 332-0500 TA Carbide Drill Cylindrical 0.1969 TA 0.1969 5.00MM Cutter Dia 0.3940 10.01MM Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Center Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.4409 62.00MM
Shank/Pilot Dia 0.1969 5.00MM
Flutes/Inserts 2
Tool Dia 0.1969 5.00MM
Flute Length 0.3940 10.01MM
Geometry & Angles
Included Angle 90°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.1969 5.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA
