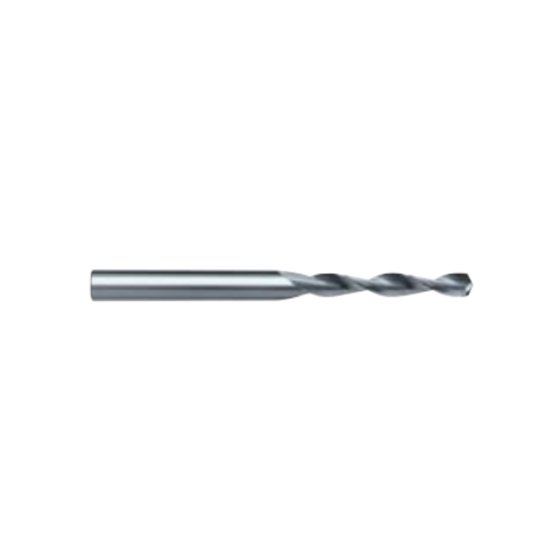

Picture of HAM TFR313-1150 TA 11.50mm Solid Carbide Twist Drill, 2 Flute, TA Coated, Non-Coolant

HAM TFR313-1150 TA 11.50mm Solid Carbide Twist Drill, 2 Flute, TA Coated, Non-Coolant

Part Number: TFR313-1150 TA
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1126531
Vendor: Sussex Tool and Supply
$273.25

Description

HAM 313-1150 TA Carbide Drill Shank 0.4527 TA 0.4528 11.50MM Drill Dia 3.7010 94.01MM Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.5906 142.00MM
Shank/Pilot Dia 0.4527 11.50MM
Flutes/Inserts 2
Tool Dia 0.4528 11.50MM
Flute Length 3.7010 94.01MM
Geometry & Angles
Included Angle 120°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.4528 11.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA
