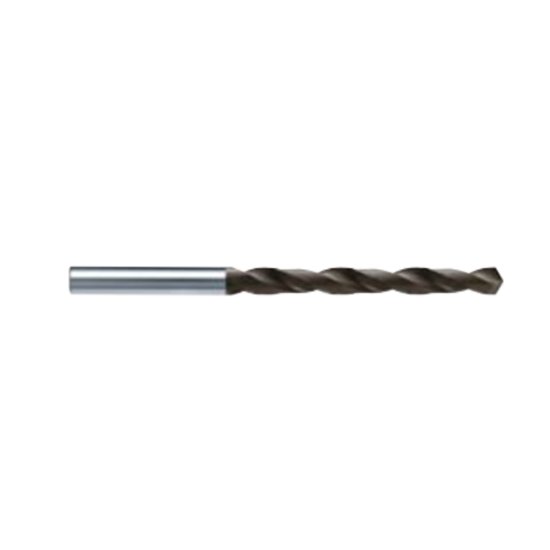

Picture of HAM TFR310-1400 TA 14.00mm Solid Carbide Twist Drill, 2 Flute, TA Coated, Non-Coolant

HAM TFR310-1400 TA 14.00mm Solid Carbide Twist Drill, 2 Flute, TA Coated, Non-Coolant

Part Number: TFR310-1400 TA
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1126533
Vendor: Sussex Tool and Supply
$342.00

Description

HAM 310-1400 TA Carbide Drill Shank 0.5512 TA 0.5512 14.00MM Drill Dia 4.2520 108.00MM Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.2992 160.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Flute Length 4.2520 108.00MM
Geometry & Angles
Included Angle 120°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.5512 14.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA
