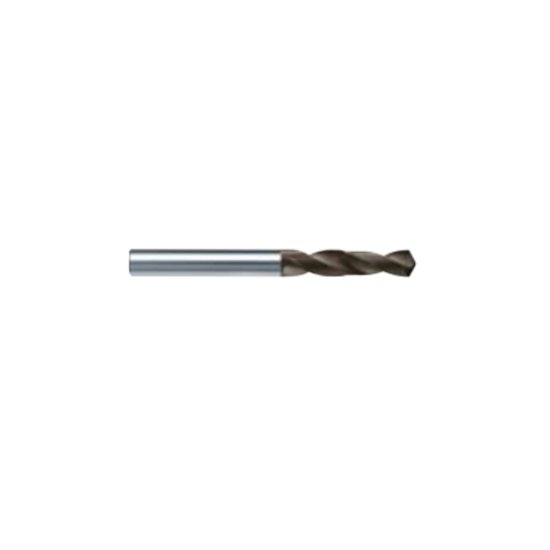

Picture of HAM TFR304-0540 TA 5.40mm Solid Carbide Twist Drill, 2 Flute, TA Coated, Non-Coolant

HAM TFR304-0540 TA 5.40mm Solid Carbide Twist Drill, 2 Flute, TA Coated, Non-Coolant

Part Number: TFR304-0540 TA
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1126315
Vendor: Sussex Tool and Supply
$33.30

Description

HAM 304-0540 TA Carbide Drill Shank 0.2126 TA 0.2126 5.40MM Drill Dia 1.1020 27.99MM Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.5984 66.00MM
Shank/Pilot Dia 0.2126 5.40MM
Flutes/Inserts 2
Tool Dia 0.2126 5.40MM
Flute Length 1.1020 27.99MM
Geometry & Angles
Included Angle 120°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.2126 5.40MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA
