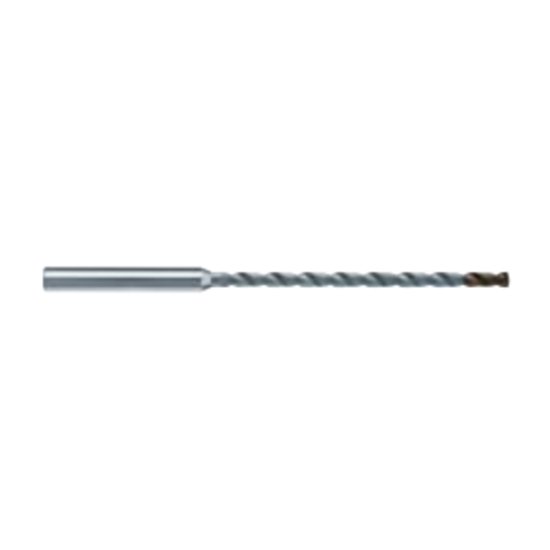

Picture of HAM TFR30-2341-0265 2.65mm 20XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

HAM TFR30-2341-0265 2.65mm 20XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

Part Number: TFR30-2341-0265
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1128755
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

HAM 30-2341-0265 Carbide Drill Cylindrical 0.1181 TA 0.1043 2.65MM Cutter Dia 2.2440 57.00MM 20.0XD Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.1043 2.65MM
Flute Length 2.2440 57.00MM
Dia Deep 20.0x Dia
Geometry & Angles
Included Angle 135°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.1043 2.65MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA
