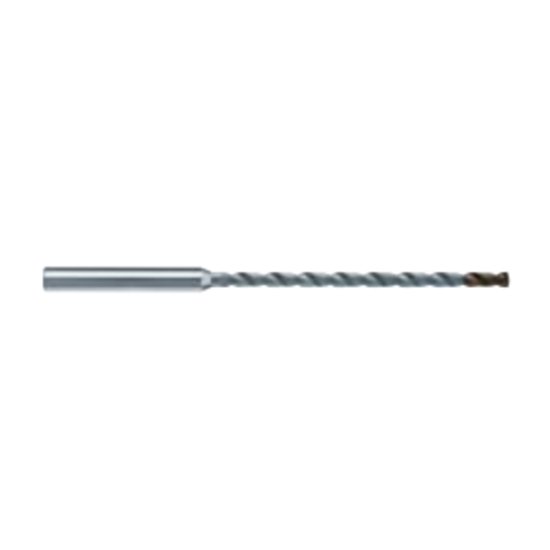

Picture of HAM TFR30-2341-0125 1.25mm 20XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

HAM TFR30-2341-0125 1.25mm 20XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

Part Number: TFR30-2341-0125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1128729
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HAM 30-2341-0125 Carbide Drill Cylindrical 0.1181 TA 0.0492 1.25MM Cutter Dia 1.0590 26.90MM 20.0XD Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TA
Mach Side Connection Size 0.1181 3.00MM
Overall Length 2.5591 65.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0492 1.25MM
Type Of Tool Drill
Included Angle 135°
Flute Length 1.0590 26.90MM
Cut Dia Min 0.0492 1.25MM
Dia Deep 20.0x Dia
