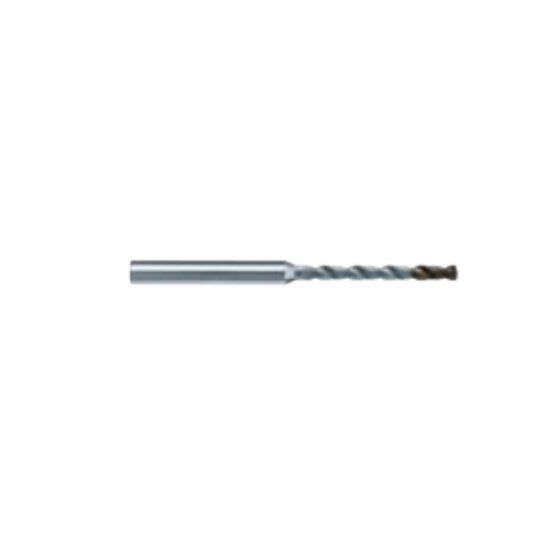

Picture of HAM TFR30-2261-0160 1.60mm 12XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

HAM TFR30-2261-0160 1.60mm 12XD Solid Carbide Deep Hole Drill, 2 Flutes, TA Coated, Coolant Thru

Part Number: TFR30-2261-0160

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1128646
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
HAM 30-2261-0160 Carbide Drill Cylindrical 0.1181 TA 0.0629 1.60MM Cutter Dia 0.8500 21.59MM 12.0XD Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TA
Mach Side Connection Size 0.1181 3.00MM
Overall Length 2.5591 65.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0630 1.60MM
Type Of Tool Drill
Included Angle 135°
Flute Length 0.8500 21.59MM
Cut Dia Min 0.0629 1.60MM
Dia Deep 12.0x Dia
