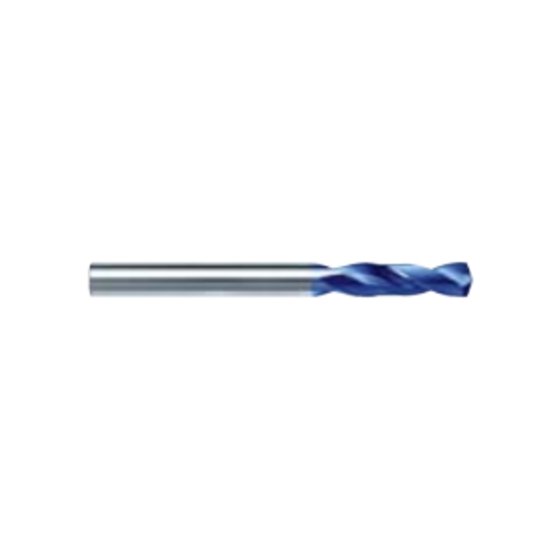

Picture of HAM TFR30-1891-1468 TA-CN 37/64" 3XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Non-Coolant

HAM TFR30-1891-1468 TA-CN 37/64" 3XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Non-Coolant

Part Number: TFR30-1891-1468 TA-CN
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1130288
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

HAM 30-1891-1468 TA-CN Carbide Drill Cylindrical 0.6299 TA-CN 0.5781 14.68MM - 37/64Cutter Dia 2.5590 65.00MM 3.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.5276 115.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5781 14.68MM - 37/64
Flute Length 2.5590 65.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp
Cut Dia Min 0.5781 14.68MM - 37/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-CN
