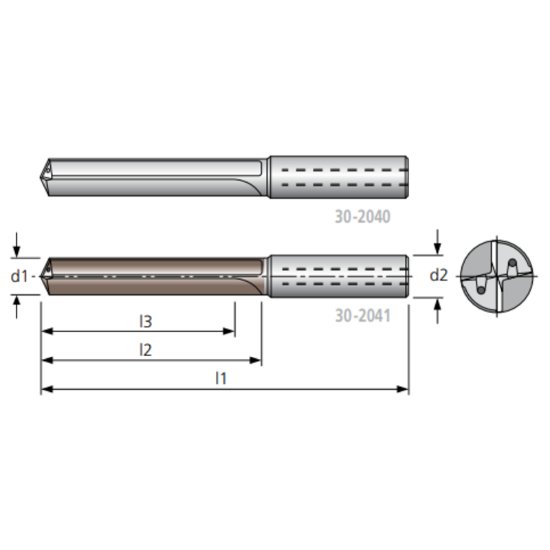

HAM TFR299-1200 TA 12.00mm 7XD Solid Carbide Multi Drill, 2 Straight Flutes, TiAlN Coated, Coolant Thru

Part Number: TFR299-1200 TA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1128454
$319.30
HAM 299-1200 TA Carbide Drill TiAlN 0.4724 12.00MM Cutter Dia 7.0XD Flute Length Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TiAlN
Coolant Thru Thru Coolant
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Type Of Tool Drill
Included Angle 135°
Cut Dia Min 0.4724 12.00MM
Dia Deep 7.0x Dia
