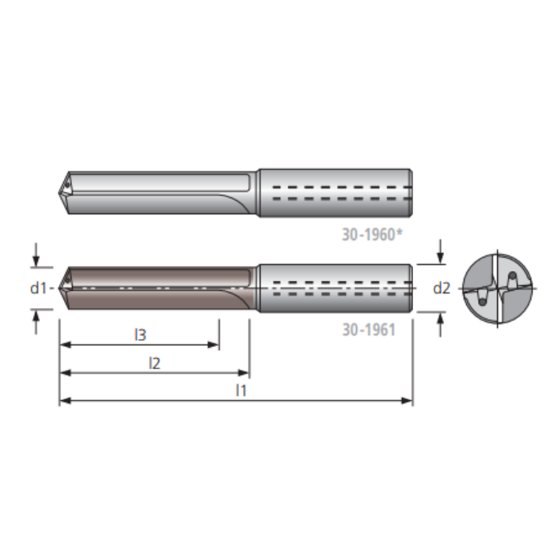

Picture of HAM TFR297-1905 TA 3/4" 3XD Solid Carbide Multi Drill, 2 Straight Flutes, TA Coated, Coolant Thru

HAM TFR297-1905 TA 3/4" 3XD Solid Carbide Multi Drill, 2 Straight Flutes, TA Coated, Coolant Thru

Part Number: TFR297-1905 TA
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$574.40
SKU: 1128351

Description

HAM 297-1905 TA Carbide Drill TA 0.7500 19.05MM - 3/4Cutter Dia 3.0XD Flute Length Carbide The new carbon coating is characterized by its high hardness, excellent wear resistance, self-lubricating properties, extremely smooth surfaces and a low coating thickness of max. 1 µm.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA
