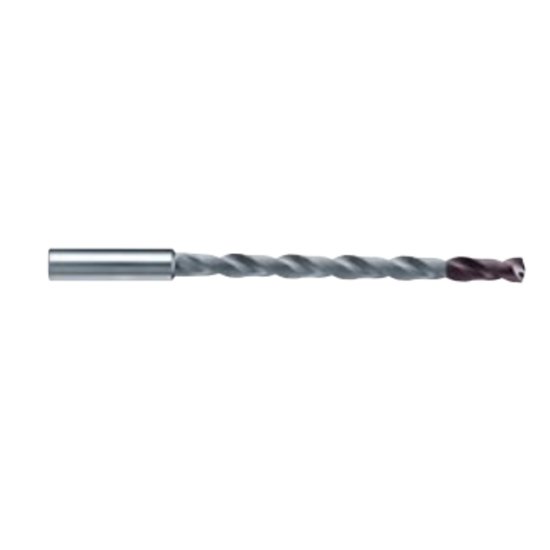

Picture of HAM TFR293-1627 TA-C 41/64" 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR293-1627 TA-C 41/64" 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR293-1627 TA-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1127707
Vendor: Sussex Tool and Supply
$1,141.85

Description

HAM 293-1627 TA-C Carbide Drill Shank 0.7087 TA-C 0.6406 16.27MM - 41/64Drill Dia 6.7320 170.99MM 12.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 8.7402 222.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.6406 16.27MM - 41/64
Flute Length 6.7320 170.99MM
Dia Deep 12.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.6406 16.27MM - 41/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-C
