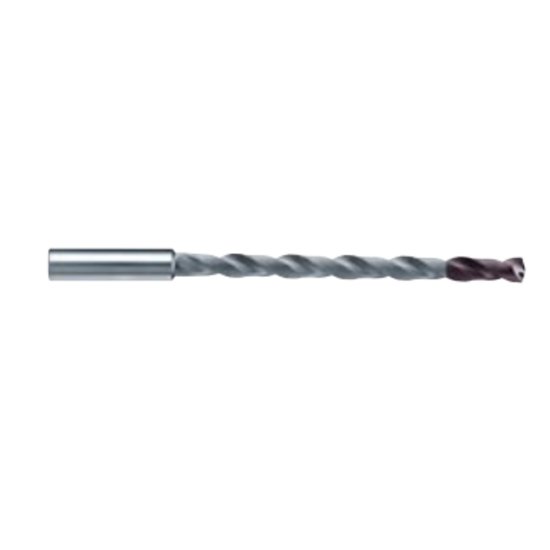

Picture of HAM TFR293-1490 TA-C 14.90mm 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR293-1490 TA-C 14.90mm 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR293-1490 TA-C
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,024.80
SKU: 1127692

Description

HAM 293-1490 TA-C Carbide Drill Shank 0.6299 TA-C 0.5866 14.90MM Drill Dia 5.9840 151.99MM 12.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 7.9921 203.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5866 14.90MM
Flute Length 5.9840 151.99MM
Dia Deep 12.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.5866 14.90MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-C
