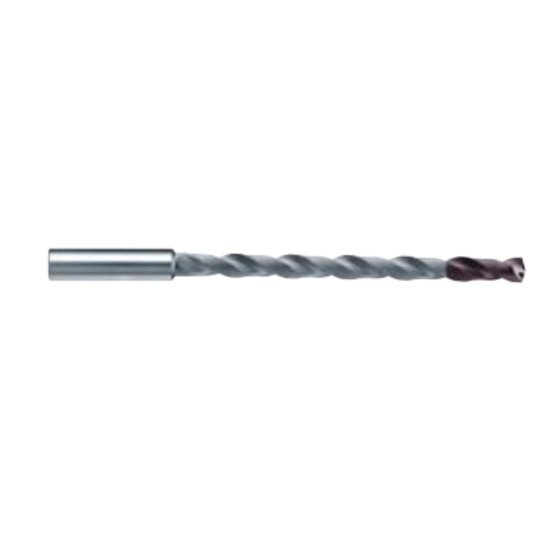

Picture of HAM TFR293-1360 TA-C 13.60mm 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru..

HAM TFR293-1360 TA-C 13.60mm 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru..

Part Number: TFR293-1360 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127675
Vendor: Sussex Tool and Supply
$823.95
HAM 293-1360 TA-C Carbide Drill Shank 0.5512 TA-C 0.5354 13.60MM Drill Dia 5.1570 130.99MM 12.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.5512 14.00MM
Overall Length 7.0079 178.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5354 13.60MM
Type Of Tool Drill
Included Angle 140°
Flute Length 5.1570 130.99MM
Cut Dia Min 0.5354 13.60MM
Dia Deep 12.0x Dia
