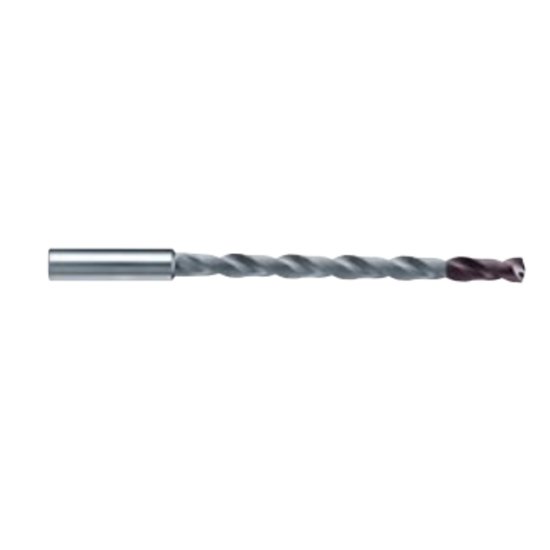

Picture of HAM TFR293-0635 TA-C 1/4" 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR293-0635 TA-C 1/4" 12XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR293-0635 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127584
Vendor: Sussex Tool and Supply
$276.80
HAM 293-0635 TA-C Carbide Drill Shank 0.3150 TA-C 0.2500 6.35MM - 1/4 - EDrill Dia 4.2520 108.00MM 12.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.3150 8.00MM
Overall Length 5.7480 146.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Type Of Tool Drill
Included Angle 140°
Flute Length 4.2520 108.00MM
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Dia Deep 12.0x Dia
