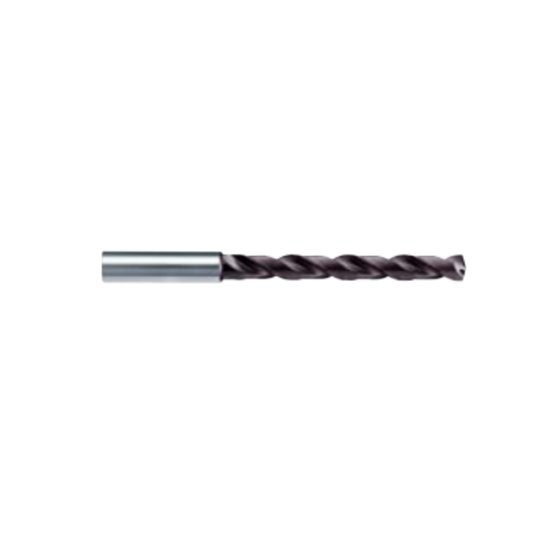

HAM TFR292-1290 TA-C 12.90mm 8XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR292-1290 TA-C
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1127484
Vendor: Sussex Tool and Supply
$400.10

Description

HAM 292-1290 TA-C Carbide Drill Shank 0.5512 TA-C 0.5079 12.90MM Drill Dia 5.1570 130.99MM 8.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 7.0079 178.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5079 12.90MM
Flute Length 5.1570 130.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.5079 12.90MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-C
