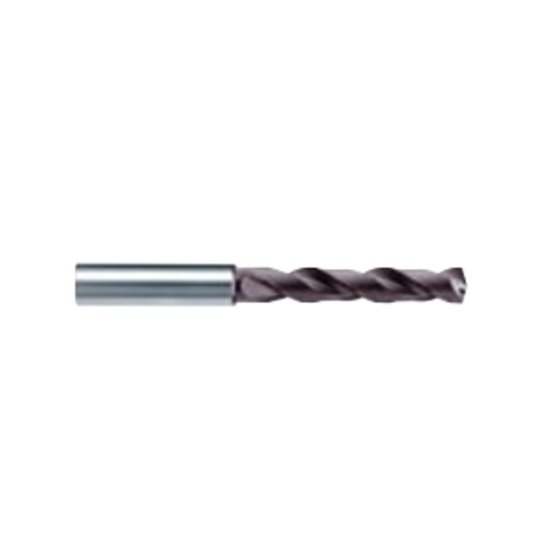

Picture of HAM TFR286-1945 TA-C 49/64" 5XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR286-1945 TA-C 49/64" 5XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR286-1945 TA-C
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1127352
Vendor: Sussex Tool and Supply
$502.50

Description

HAM 286-1945 TA-C Carbide Drill Shank 0.7874 TA-C 0.7656 19.45MM - 49/64Drill Dia 3.9760 100.99MM 5.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.0236 153.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7656 19.45MM - 49/64
Flute Length 3.9760 100.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.7656 19.45MM - 49/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-C
