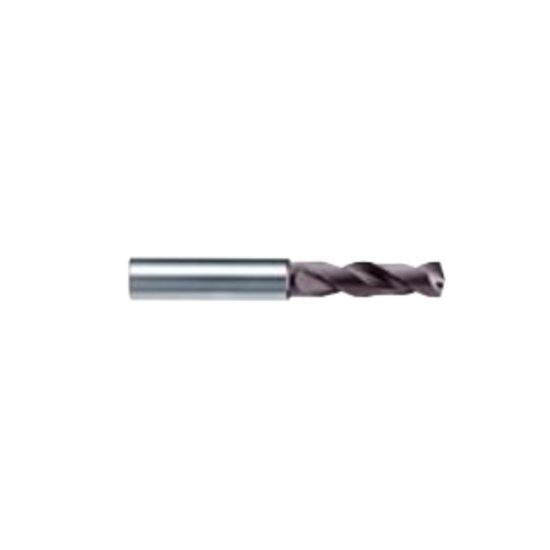

Picture of HAM TFR285-1826 TAC 23/32" 3XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR285-1826 TAC 23/32" 3XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR285-1826 TAC
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1127164
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

HAM 285-1826 TAC Carbide Drill Shank 0.7874 TA-C 0.7188 18.26MM - 23/32Drill Dia 3.1100 78.99MM 3.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.1575 131.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7188 18.26MM - 23/32
Flute Length 3.1100 78.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.7188 18.26MM - 23/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-C
