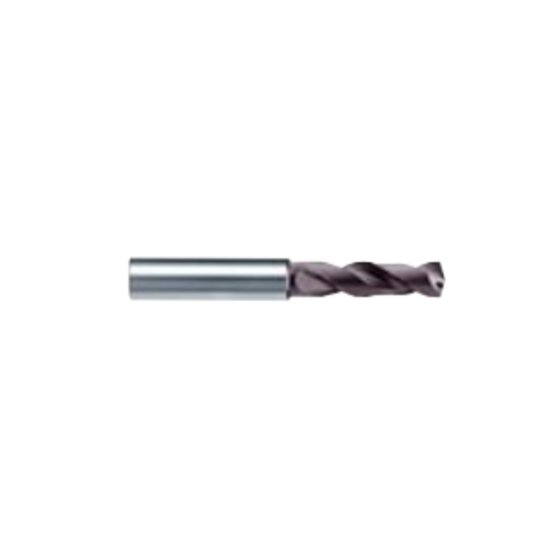

Picture of HAM TFR285-1750 TA-C 17.50mm 3XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

HAM TFR285-1750 TA-C 17.50mm 3XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Coolant Thru

Part Number: TFR285-1750 TA-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1127162
Vendor: Sussex Tool and Supply
$367.50

Description

HAM 285-1750 TA-C Carbide Drill Shank 0.7087 TA-C 0.6890 17.50MM Drill Dia 2.8740 73.00MM 3.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8425 123.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.6890 17.50MM
Flute Length 2.8740 73.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.6890 17.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-C
