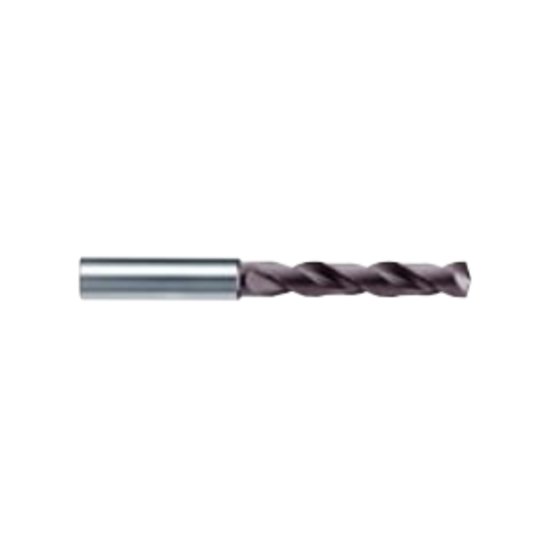

Picture of HAM TFR283-1945 TA-C 46/64" 5XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Non-Coolant

HAM TFR283-1945 TA-C 46/64" 5XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Non-Coolant

Part Number: TFR283-1945 TA-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HAM
SKU: 1127810
Vendor: Sussex Tool and Supply
$570.85
HAM 283-1945 TA-C Carbide Drill Shank 0.7874 TA-C 0.7188 18.26MM - 23/32Drill Dia 3.9760 100.99MM 5.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Coating TA-C
Mach Side Connection Size 0.7874 20.00MM
Overall Length 6.0236 153.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7188 18.26MM - 23/32
Type Of Tool Drill
Included Angle 140°
Flute Length 3.9760 100.99MM
Cut Dia Min 0.7188 18.26MM - 23/32
Dia Deep 5.0x Dia
