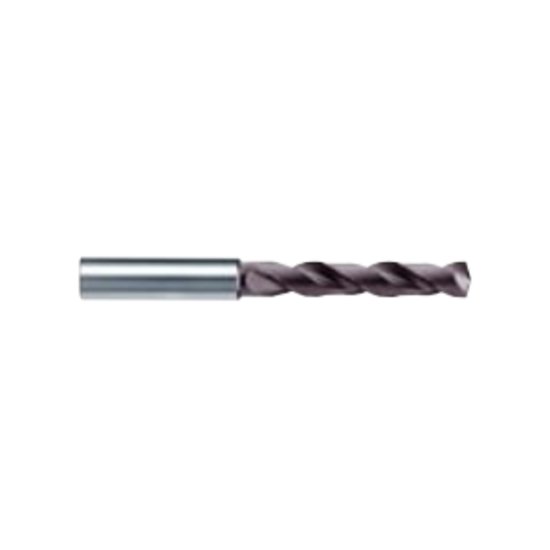

Picture of HAM TFR283-1905 TA-C 3/4" 5XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Non-Coolant

HAM TFR283-1905 TA-C 3/4" 5XD Solid Carbide Super Drill, 2 Flutes, TA-C Coated, Non-Coolant

Part Number: TFR283-1905 TA-C
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$570.85
SKU: 1127809

Description

HAM 283-1905 TA-C Carbide Drill Shank 0.7874 TA-C 0.7500 19.05MM - 3/4Drill Dia 3.9760 100.99MM 5.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.0236 153.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Flute Length 3.9760 100.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Cut Dia Min 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-C
