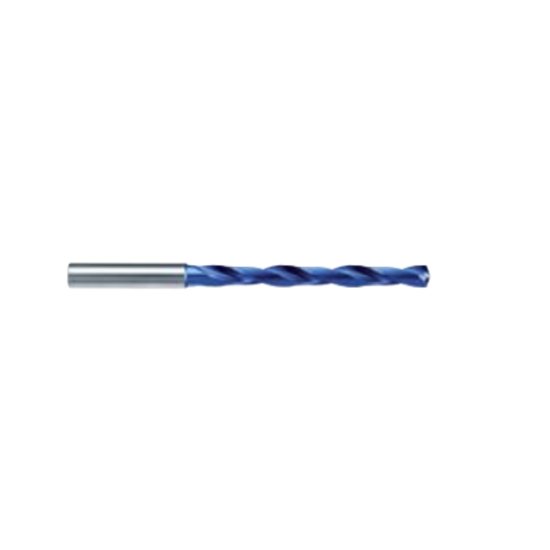

Picture of HAM TFR271-1225 TA-CN 12.25mm 8XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

HAM TFR271-1225 TA-CN 12.25mm 8XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

Part Number: TFR271-1225 TA-CN
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1128238
Vendor: Sussex Tool and Supply
$400.10

Description

HAM 271-1225 TA-CN Carbide Drill Shank 0.5512 TA-CN 0.4823 12.25MM Drill Dia 5.1570 130.99MM 8.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 7.0079 178.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.4823 12.25MM
Flute Length 5.1570 130.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp
Cut Dia Min 0.4823 12.25MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-CN
