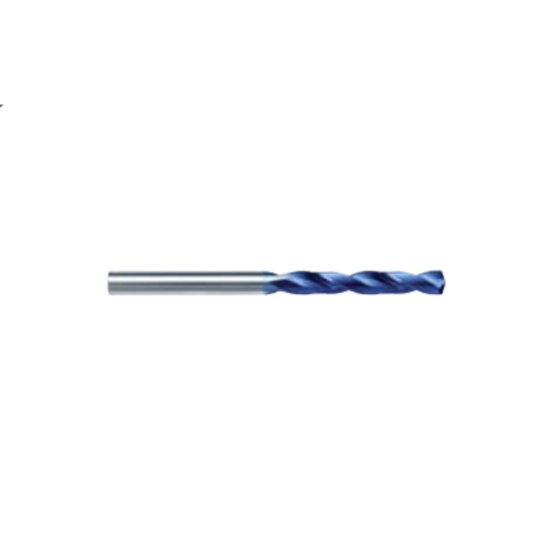

Picture of HAM TFR270-1490 TA-CN 14.90mm 5XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

HAM TFR270-1490 TA-CN 14.90mm 5XD Solid Carbide Niro Drill, 2 Flutes, TA-CN Coated, Coolant Thru

Part Number: TFR270-1490 TA-CN
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1128078
Vendor: Sussex Tool and Supply
$317.85

Description

HAM 270-1490 TA-CN Carbide Drill Shank 0.6299 TA-CN 0.5866 14.90MM Drill Dia 3.2680 83.01MM 5.0XD Flute Length Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Toronto
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.2362 133.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5866 14.90MM
Flute Length 3.2680 83.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp
Cut Dia Min 0.5866 14.90MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TA-CN
