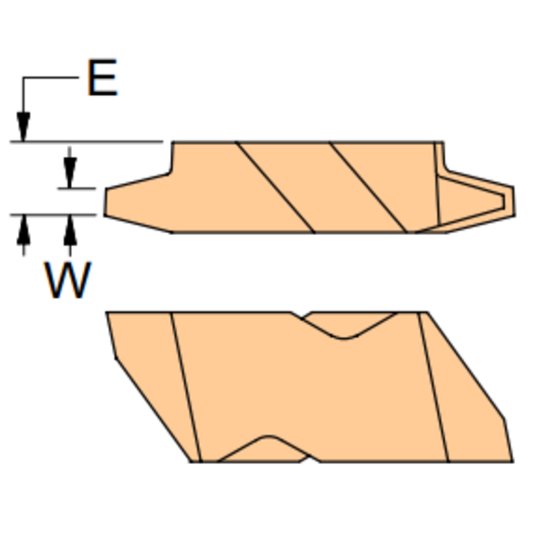

Picture of HA 3L16 310F Horizon 38970 Groove Threading,Threading Insert 16.00TPI Acme

HA 3L16 310F Horizon 38970 Groove Threading,Threading Insert 16.00TPI Acme

Part Number: HOR38970

Need Assistance or Service? Please call 262-251-4020

Manufacturer: HORIZON
SKU: 1003201
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

HORIZON threading insert 16.00TPI ACME thread type 310F grade TiAlN coating made in USA. Brand: HORIZON. Made In Usa: Yes. Coating: TiAlN. Thread Type: ACME. Grade: 31-0F.

Key Details

Materials & Finish

  • Coating: TiAlN
  • Grade: 310F

Thread & Fittings

  • Thread Type: ACME

Grades & Coatings

  • Alternate Description: HORIZON 38970 Top Notch Groove Threading Positive TiAlN HORIZON HA 3L16 310F Indexable, Threading Insert Top Notch ACME 16.00TPI Carbide TiAlN HA 3L16 310F HA 3L16 310F.

Other Details

  • Brand: HORIZON
  • Shipping State: NORTH CAROLINA
  • Made In Usa: Yes

Technical Overview

What It Does

Provides threading for ACME threads at 16.00TPI. Designed for indexable use in machining operations. Functions as a threading insert with TiAlN coating.

Composition

Carbide, TiAlN coating, HA 3L16 310F grade.

Typical Uses

Threading ACME threads at 16.00TPI. Used in machining with HORIZON HA 3L16 316F inserts. Applied in grooving operations with HORIZON 38970.

Products specifications
Attribute name Attribute value
Shipping State NORTH CAROLINA
Cutter Type Insert
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiAlN
Insert Or Tool Insert
Insert Application General Purpose
Insert Style TOP NOTCH
Insert Shape Or Cutter Pocket Shape Top Notch
Insert Type Positive
Insert Size (IC) 3
Grade 310F
Hand Left Hand
Thread Pitch 16.00TPI
Thread Type ACME
Inter Or Extern Int / Ext
Insert Type Or Orientation Top Notch
Full or Partial Profile Full Profile
Thread Teeth 1
