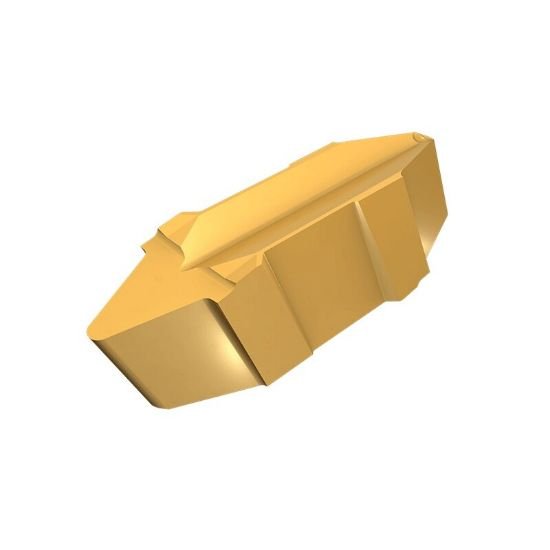

Picture of GPV 14-2.34-4 IC5010 Iscar 6404307 Grooving,Polley V Grooving Insert 0.3870 9.83mm Wide 0.0130 0.33mm Radius

GPV 14-2.34-4 IC5010 Iscar 6404307 Grooving,Polley V Grooving Insert 0.3870 9.83mm Wide 0.0130 0.33mm Radius

Part Number: ISC6404307 ISO: GPV 14-2.34-4 IC5010 ANSI:GPV 14-2.34-4 IC5010
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1085345
Vendor: Sussex Tool and Supply
$74.09
This product has a minimum quantity of 10

Description

ISCAR 6404307 Dog Bone Grooving,Polley V Grooving Positive TiCN + Al2O3 + TiN A hard substrate, improved MTCVD and a thick alpha alumina CVD coating. Recommended mainly for grey cast iron at stable or slightly unstable conditions. Can be used successfully also on nodular cast iron.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style GP
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 14
Cutting Width 0.3870 9.83MM
Geometry & Angles
Corner Radius 0.0130 0.33MM
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Depth Of Cut Max 0.0870
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC5010
