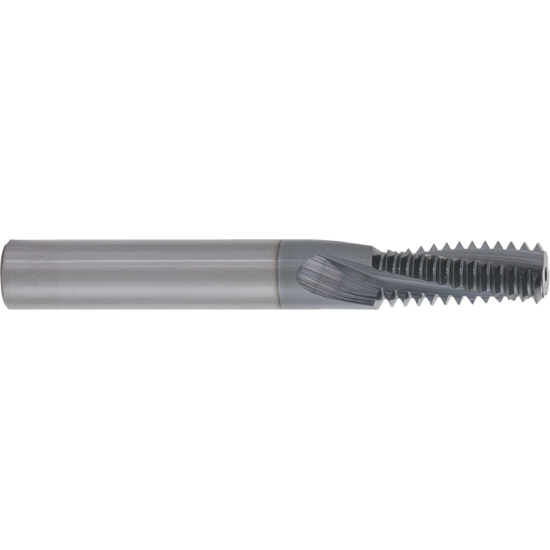

GORILLA MILL GMTMAC716-20UN3FL2X Carbide Thread Mill Helical 7/16" 20.00TPI UN TIALN 0.8750 22.23MM LOC 2.8740 73.00MM OAL

ISO: GMTMAC716-20UN3FL2X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90136
Delivery date: 3-5 days
$161.89
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#20, Material#5, Material#8, Material#16, Material#10
Sold by Pieces 1
Coating TiAlN
Shipping State Illinois
Package Size 1
Application Thread Milling
Additional Key Information 1 Mill Thread
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 28°
Thread Size 7/16"
Thread Type UN
Overall Len 2.8740 73.00MM
Thread Pitch 20.00TPI
Length Of Cut 0.8750 22.23MM
Machine Side Connection Size 0.3750 9.53MM
Cutter Style Carbide Thread Mill
Cutter Dia 0.3620 9.19MM
Machine Side CYLINDRICAL0.3750
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
