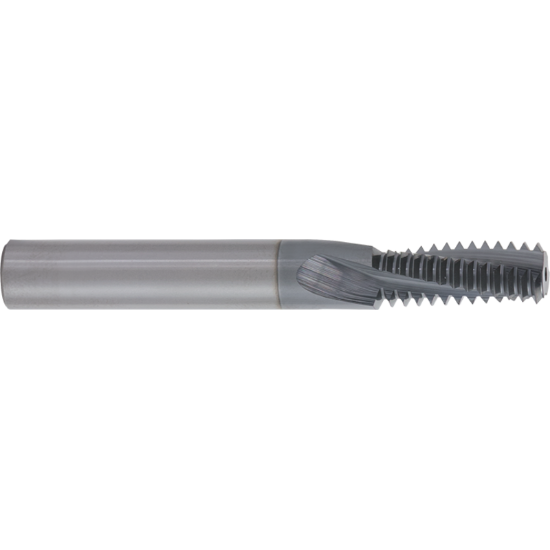

GORILLA MILL GMTMAC716-14UN3FL2X Carbide Thread Mill Helical 7/16" 14.00TPI UN TIALN 0.8930 22.68MM LOC 2.8740 73.00MM OAL

ISO: GMTMAC716-14UN3FL2X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90135
Delivery date: 3-5 days
$161.89
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#16, Material#20, Material#5, Material#15, Material#10
Coating TiAlN
Application Thread Milling
Shipping State Illinois
Sold by Pieces 1
Additional Key Information 1 Mill Thread
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Length Of Cut 0.8930 22.68MM
Machine Side Connection Size 0.3750 9.53MM
Thread Pitch 14.00TPI
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Thread Size 7/16"
Machine Side CYLINDRICAL0.3750
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Thread Type UN
Cutter Dia 0.3540 8.99MM
Overall Len 2.8740 73.00MM
Cutter Style Carbide Thread Mill
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
