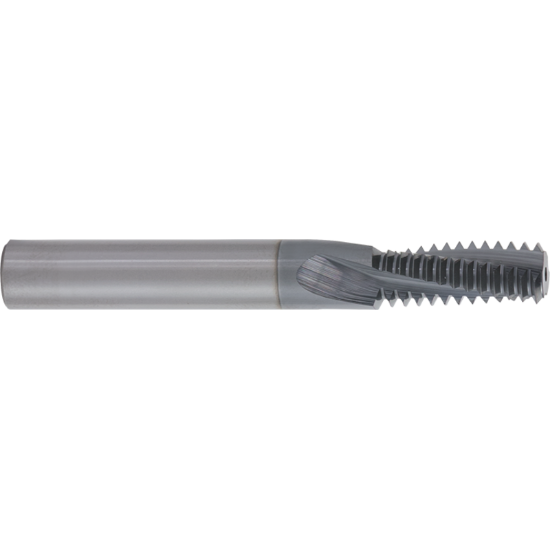

GORILLA MILL GMTMAC1600MM-2.004FL1.5X Carbide Thread Mill Helical M16 2.00MM METRIC TIALN 0.9840 24.99MM LOC 3.6220 92.00MM OAL

ISO: GMTMAC1600MM-2.004FL1.5X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90117
Delivery date: 3-5 days
$268.07
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#20, Material#5, Material#16, Material#15, Material#10
Package Size 1
Sold by Pieces 1
Application Thread Milling
Shipping State Illinois
Coating TiAlN
Additional Key Information 1 Mill Thread
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side CYLINDRICAL0.6250
Machine Side Connection Size 0.6250 15.88MM
Thread Pitch 2.00MM
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Overall Len 3.6220 92.00MM
Length Of Cut 0.9843 25.00MM
Helix Angle 28°
Thread Size M16
Cutter Dia 0.5350 13.59MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Thread Type Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Thread Mill
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
