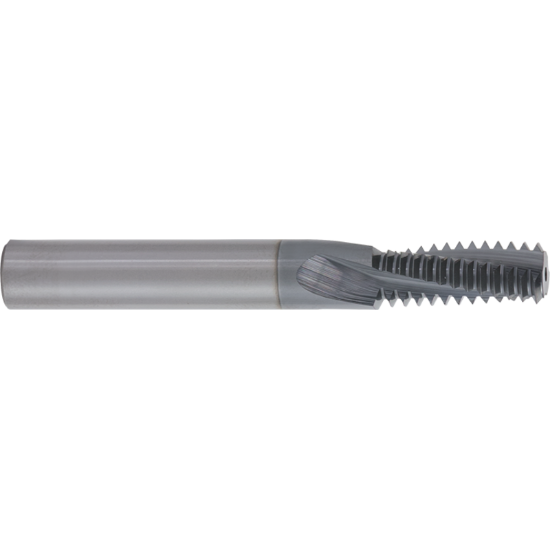

GORILLA MILL GMTMAC1400MM-2.004FL1.5X Carbide Thread Mill Helical M14 2.00MM METRIC TIALN 0.8270 21.01MM LOC 2.8740 73.00MM OAL

ISO: GMTMAC1400MM-2.004FL1.5X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90111
Delivery date: 3-5 days
$203.13
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#8, Material#10, Material#16, Material#20, Material#5
Sold by Pieces 1
Package Size 1
Additional Key Information 1 Mill Thread
Coating TiAlN
Shipping State Illinois
Application Thread Milling
Uncategorized
Made In USA Yes
Dimensional Specifications
Thread Type Metric
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 28°
Cutter Dia 0.4570 11.61MM
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.8740 73.00MM
Machine Side CYLINDRICAL0.5000
Length Of Cut 0.8270 21.01MM
Thread Size M14
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Style Carbide Thread Mill
Thread Pitch 2.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
