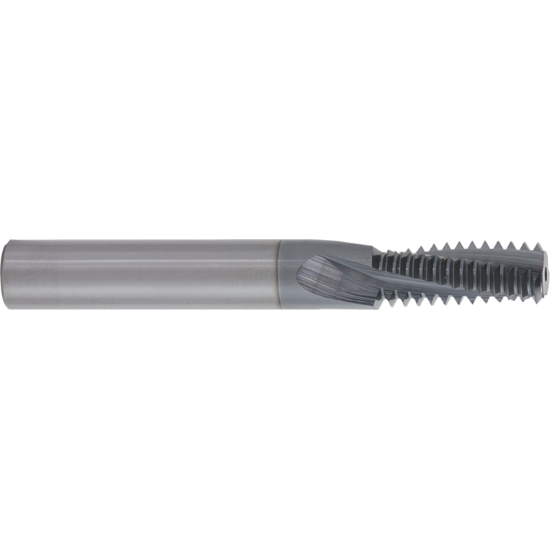

GORILLA MILL GMTMAC1200MM-1.004FL2X Carbide Thread Mill Helical M12 1.00MM METRIC TIALN 0.9650 24.51MM LOC 2.8740 73.00MM OAL

ISO: GMTMAC1200MM-1.004FL2X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90099
Delivery date: 3-5 days
$197.86
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Material # Material#16, Material#20, Material#5, Material#15, Material#8, Material#10
Coating TiAlN
Shipping State Illinois
Sold by Pieces 1
Additional Key Information 1 Mill Thread
Application Thread Milling
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.4210 10.69MM
Overall Len 2.8740 73.00MM
Machine Side CYLINDRICAL0.5000
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.9650 24.51MM
Thread Type Metric
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 28°
Thread Pitch 1.00MM
Machine Side Connection Size 0.5000 12.70MM
Thread Size M12
Cutter Style Carbide Thread Mill
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
