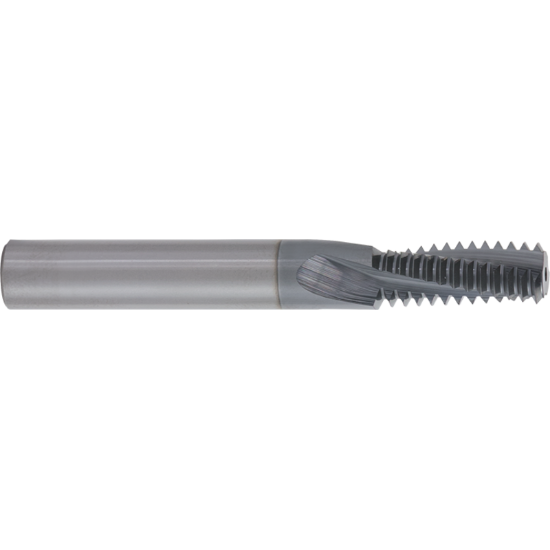

GORILLA MILL GMTMAC1000MM-1.003FL2X Carbide Thread Mill Helical M10 1.00MM METRIC TIALN 0.8070 20.50MM LOC 2.8740 73.00MM OAL

ISO: GMTMAC1000MM-1.003FL2X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: GOR90091
Delivery date: 3-5 days
$161.89
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#16, Material#15, Material#10, Material#8, Material#20, Material#5
Application Thread Milling
Coating TiAlN
Shipping State Illinois
Additional Key Information 1 Mill Thread
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Thread Type Metric
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Machine Side CYLINDRICAL0.3750
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Size M10
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.8070 20.50MM
Thread Pitch 1.00MM
Cutter Dia 0.3430 8.71MM
Cutter Style Carbide Thread Mill
Helix Angle 28°
Overall Len 2.8740 73.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Mold Yes
