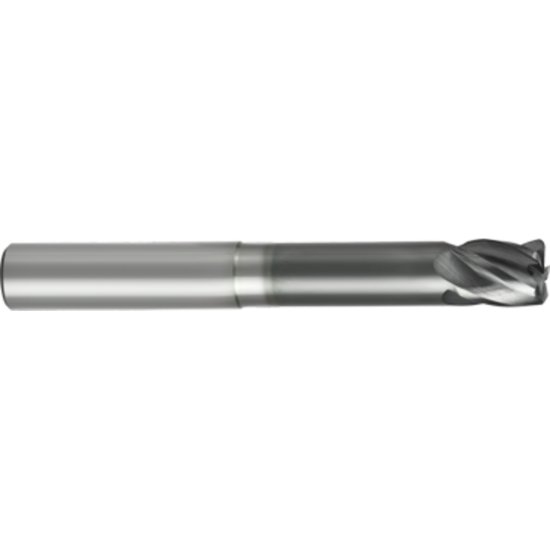

Gorilla Mill GMNR1250R50902.625 Dia 1-1/4" SH 1.2500 LOC 1.50 OAL 6.00 End Mill Carbide TiAlN Single End Corner Radius0.0900 2.29mm

Part Number: GOR10671 ISO: GMNR1250R50902.625

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1196724
$718.73
GORILLA MILL 10671 DIA 1-1/4" SH 1.2500 LOC 1.50 OAL 6.00 End Mill Carbide TiAlN Single End Corner Radius0.0900 2.29MM GORILLA MILL Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating TiAlN
Mach Side Connection Size 1.2500 31.75MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Tool Dia 1.2500 31.75MM - 1-1/4
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher/Finisher
Single/Double End Single End
Corner Radius 0.0900 2.29MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 2.6250 66.68MM
