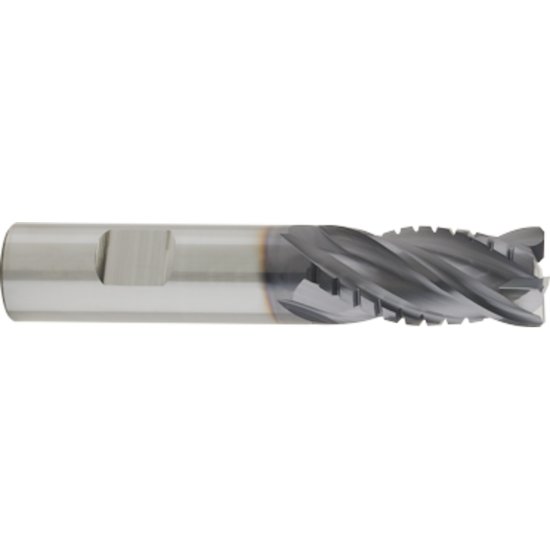

Gorilla Mill GMHX38RS4060 Dia 3/8" SH 0.3750 LOC 0.5625 OAL 2.00 End Mill Carbide TiAlN Single End Corner Radius0.0600 1.52mm SASQUATCH

Part Number: GOR40119 ISO: GMHX38RS4060
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1196146
$78.17

Description

GORILLA MILL 40119 DIA 3/8" SH 0.3750 LOC 0.5625 OAL 2.00 End Mill Carbide TiAlN Single End Corner Radius0.0600 1.52MM SASQUATCH Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher/Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5625 14.29MM
Geometry & Angles
Corner Radius 0.0600 1.52MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Inconel, Titanium
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
