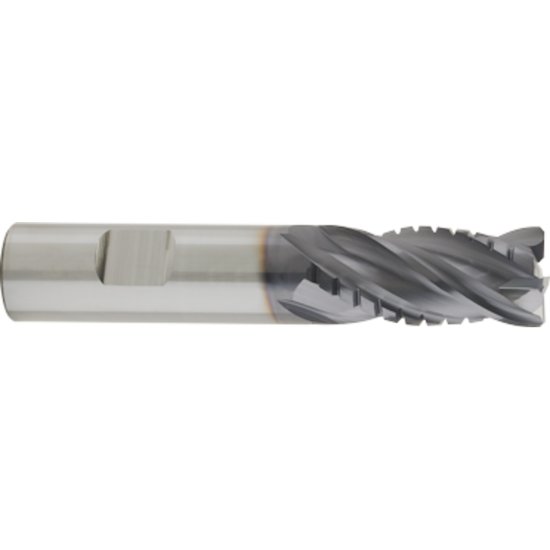

Picture of Gorilla Mill Gmhx34Rlh4250 Dia 3/4" Sh 0.7500 Loc 2.2500 Oal 5.00 End Mill Carbide Tialn Single End Corner Radius0.2500 6.35mm Sasquatch

Gorilla Mill Gmhx34Rlh4250 Dia 3/4" Sh 0.7500 Loc 2.2500 Oal 5.00 End Mill Carbide Tialn Single End Corner Radius0.2500 6.35mm Sasquatch

Part Number: GOR40104

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1003008
Vendor: Sussex Tool and Supply
$373.42

3/4 inch diameter, 0.7500 shank, 2.2500 location, 5.00 length. Carbide TiAlN coated, weldon connection, corner radius 0.2500. Made in USA, Weldon connection, toolpost type.

Key Details

Materials & Finish

  • Coating: TiAlN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.7500

Grades & Coatings

  • Alternate Description: GORILLA MILL 40104 DIA 3/4" SH 0.7500 LOC 2.2500 OAL 5.00 End Mill Carbide TiAlN Single End Corner Radius0.2500 6.35MM SASQUATCH GMHX34RLH4250

Other Details

  • Brand: GORILLA MILL
  • Shipping State: WISCONSIN
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with carbide tip. Designed for end milling operations. Corner radius 0.2500 with 6.35mm size.

Composition

Carbide TiAlN coating. Weldon connection. Diameter 3/4". Length 2.2500. Overall length 5.00.

Typical Uses

Milling tasks. Use in machine with Weldon toolpost. Fits in standard toolpost setups.

Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) WELDON0.7500
Machine Side (Toolpost) Connection Type Weldon
Overall Length 5.0000 127.00MM
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Family Group Sasquatch
Coolant Thru Non Coolant
Coating TiAlN
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 0.7500 19.05MM - 3/4
Flutes Or Inserts 4
Length Type Long
Performance Rating High Performance
Length Of Cut 2.2500 57.15MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Rougher/Finisher
Single Or Double End Single End
Corner Radius 0.2500 6.35MM
Inch Or Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
