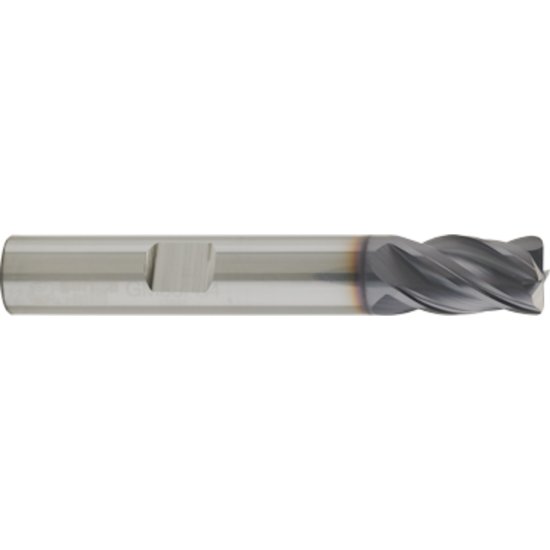

Gorilla Mill GM716R4060WF Dia 7/16" SH 0.4375 LOC 1.00 OAL 2.50 End Mill Carbide TiAlN Single End Corner Radius0.0600 1.52mm

Part Number: GOR10603 ISO: GM716R4060WF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1196869
$60.91
GORILLA MILL 10603 DIA 7/16" SH 0.4375 LOC 1.00 OAL 2.50 End Mill Carbide TiAlN Single End Corner Radius0.0600 1.52MM GORILLA MILL Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating TiAlN
Mach Side Connection Size 0.4375 11.11MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 4
Tool Dia 0.4375 11.11MM - 7/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher/Finisher
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
