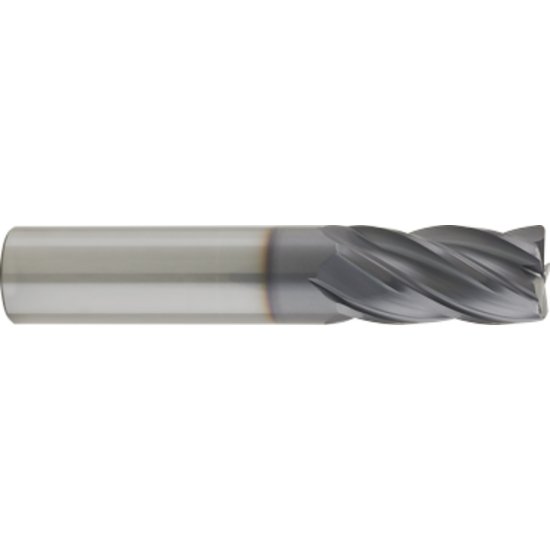

Picture of Gorilla Mill Gm516Rxl5060 Dia 5/16" Sh 0.3125 Loc 1.50 Oal 4.00 End Mill Carbide Tialn Single End Corner Radius0.0600 1.52mm

Gorilla Mill Gm516Rxl5060 Dia 5/16" Sh 0.3125 Loc 1.50 Oal 4.00 End Mill Carbide Tialn Single End Corner Radius0.0600 1.52mm

Part Number: GOR10533

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1000005
Vendor: Sussex Tool and Supply
$57.21

Carbide end mill with TiAlN coating. Diameter 5/16 inch, length 1.50 inch, overall length 4.00 inches. Cylindrical machine connection, corner radius 0.0600 inches.

Key Details

Materials & Finish

  • Coating: TiAlN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.3125

Grades & Coatings

  • Alternate Description: GORILLA MILL 10533 DIA 5/16" SH 0.3125 LOC 1.50 OAL 4.00 End Mill Carbide TiAlN Single End Corner Radius0.0600 1.52MM GORILLA MILL GM516RXL5060

Other Details

  • Brand: GORILLA MILL
  • Shipping State: WISCONSIN
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with carbide tip. Designed for end milling operations. Features single end corner radius of 0.0600.

Composition

Carbide, TiAlN coating, cylindrical connection 0.3125.

Typical Uses

Milling tasks with 5/16" diameter and 4.00" overall length. Used in machine tools with cylindrical toolpost. Suitable for precision cutting with 1.50" location.

Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Cutter Type End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.3125
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 4.0000 101.60MM
Shank Or Pilot Diameter 0.3125 7.93MM - 5/16
Family Group Gorilla Mill
Coolant Thru Non Coolant
Coating TiAlN
Mach Side Connection Size 0.3125 7.94MM - 5/16
Tool Diameter 0.3125 7.94MM - 5/16
Flutes Or Inserts 5
Length Type Extra Long
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Rougher/Finisher
Single Or Double End Single End
Corner Radius 0.0600 1.52MM
Inch Or Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
