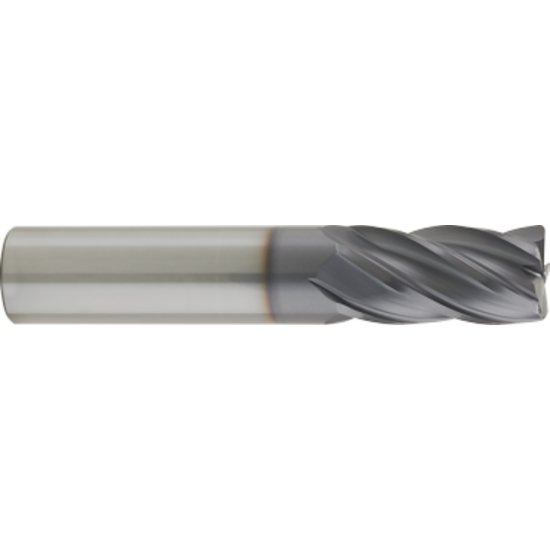

Gorilla Mill GM34RSL5120 Dia 3/4" SH 0.7500 LOC 4.00 OAL 7.00 End Mill Carbide TiAlN Single End Corner Radius0.1200 3.05mm

Part Number: GOR10440 ISO: GM34RSL5120
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1197442
$392.03

Description

GORILLA MILL 10440 DIA 3/4" SH 0.7500 LOC 4.00 OAL 7.00 End Mill Carbide TiAlN Single End Corner Radius0.1200 3.05MM GORILLA MILL Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Extra Long
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher/Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 4.0000 101.60MM
Geometry & Angles
Corner Radius 0.1200 3.05MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
