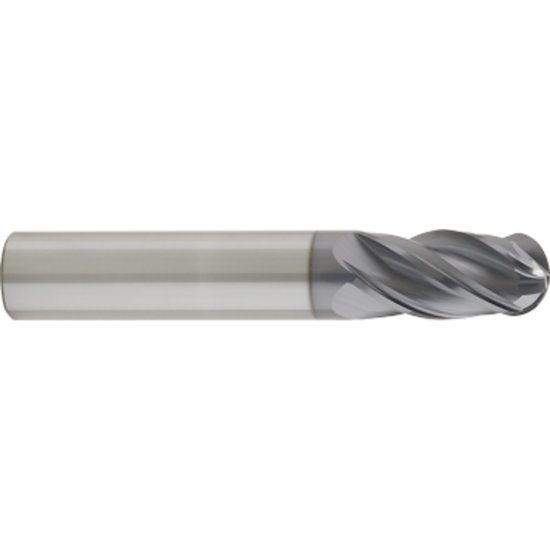

Gorilla Mill GM316B4 Dia 3/16" SH 0.1875 LOC 0.6250 OAL 2.00 End Mill Rougher/Finisher Variable Helix Carbide TiAlN Single End Ball NoseBall

Part Number: GOR10343 ISO: GM316B4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1196981
$29.68
GORILLA MILL 10343 DIA 3/16" SH 0.1875 LOC 0.6250 OAL 2.00 End Mill Rougher/Finisher Variable Helix Carbide TiAlN Single End Ball NoseBall GORILLA MILL Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating TiAlN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1875 4.76MM - 3/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Rougher/Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
