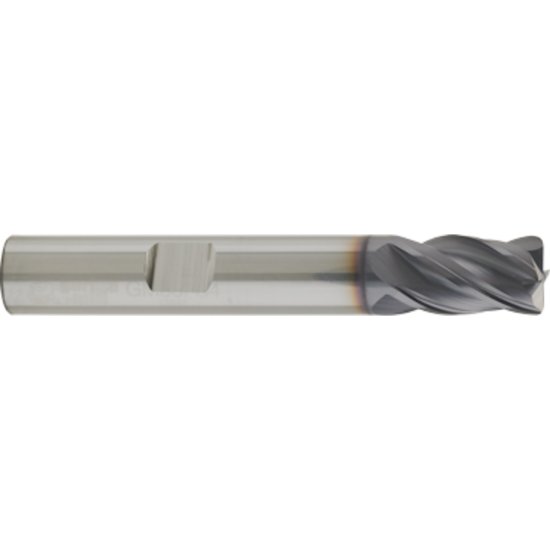

Picture of Gorilla Mill Gm1200mmr4030Wf Dia 12mm Sh 0.4724 Loc 1.2598 Oal 2.9528 End Mill Carbide Tialn Single End Corner Radius0.0118 0.30mm

Gorilla Mill Gm1200mmr4030Wf Dia 12mm Sh 0.4724 Loc 1.2598 Oal 2.9528 End Mill Carbide Tialn Single End Corner Radius0.0118 0.30mm

Part Number: GOR10142

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1003135
Vendor: Sussex Tool and Supply
$72.88

Carbide end mill with TiAlN coating. Weldon connection 12mm diameter. Shank 0.4724, location 1.2598, overall length 2.9528. Single end corner radius 0.30mm.

Key Details

Materials & Finish

  • Coating: TiAlN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON0.4724

Grades & Coatings

  • Alternate Description: GORILLA MILL 10142 DIA 12MM SH 0.4724 LOC 1.2598 OAL 2.9528 End Mill Carbide TiAlN Single End Corner Radius0.0118 0.30MM GORILLA MILL GM1200MMR4030WF

Other Details

  • Brand: GORILLA MILL
  • Shipping State: WISCONSIN
  • Made In Usa: Yes

Technical Overview

What It Does

Cuts material with carbide tip. Designed for precision milling. Features single end corner radius 0.0118 mm.

Composition

Carbide, TiAlN coating, Weldon connection. Diameter 12mm, length 2.9528 mm. Shank 0.4724 mm, location 1.2598 mm.

Typical Uses

Milling operations in metal. Used in machine tools with Weldon post. Suitable for high-speed cutting tasks.

Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) WELDON0.4724
Machine Side (Toolpost) Connection Type Weldon
Overall Length 2.9528 75.00MM
Shank Or Pilot Diameter 0.4724 12.00MM
Family Group Gorilla Mill
Coolant Thru Non Coolant
Coating TiAlN
Mach Side Connection Size 0.4724 12.00MM
Tool Diameter 0.4724 12.00MM
Flutes Or Inserts 4
Length Type Standard
Performance Rating High Performance
Length Of Cut 1.2600 32.00MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Rougher/Finisher
Single Or Double End Single End
Corner Radius 0.0118 0.30MM
Inch Or Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
