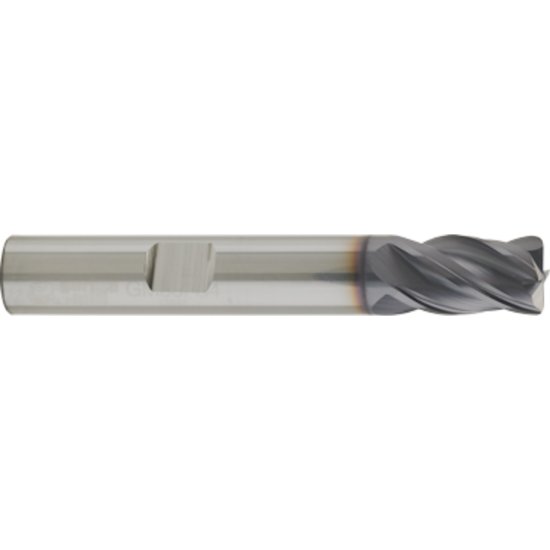

Picture of Gorilla Mill Gm10Rs4120Wf Dia 1" Sh 1.00 Loc 1.00 Oal 4.00 End Mill Carbide Tialn Single End Corner Radius0.1200 3.05mm

Gorilla Mill Gm10Rs4120Wf Dia 1" Sh 1.00 Loc 1.00 Oal 4.00 End Mill Carbide Tialn Single End Corner Radius0.1200 3.05mm

Part Number: GOR10100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1003314
Vendor: Sussex Tool and Supply
$312.34

Carbide end mill with TiAlN coating. Diameter 1 inch, length 1.00 inch, overall length 4.00 inch. Weldon 1.0000 connection, single end corner radius 0.1200. Made in USA, GORILLA MILL brand.

Key Details

Materials & Finish

  • Coating: TiAlN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON1.0000

Grades & Coatings

  • Alternate Description: GORILLA MILL 10100 DIA 1" SH 1.00 LOC 1.00 OAL 4.00 End Mill Carbide TiAlN Single End Corner Radius0.1200 3.05MM GORILLA MILL GM10RS4120WF

Other Details

  • Brand: GORILLA MILL
  • Shipping State: WISCONSIN
  • Made In Usa: Yes
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with carbide tip. Designed for end milling operations. Features corner radius 0.1200 3.05mm.

Composition

Carbide, TiAlN coating, Weldon 1.0000 connection.

Typical Uses

Milling in machine with Weldon toolpost. Used with 1" diameter and 4.00 OAL. Suitable for precision cutting tasks.

Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Cutter Type Solid End Mill
Made In USA YES
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) WELDON1.0000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 4.0000 101.60MM
Shank Or Pilot Diameter 1.0000 25.40MM
Family Group Gorilla Mill
Coolant Thru Non Coolant
Coating TiAlN
Mach Side Connection Size 1.0000 25.40MM
Tool Diameter 1.0000 25.40MM
Flutes Or Inserts 4
Type of Tool End Mill
Length Type Stub
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Rougher/Finisher
Single Or Double End Single End
Corner Radius 0.1200 3.05MM
Inch Or Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
