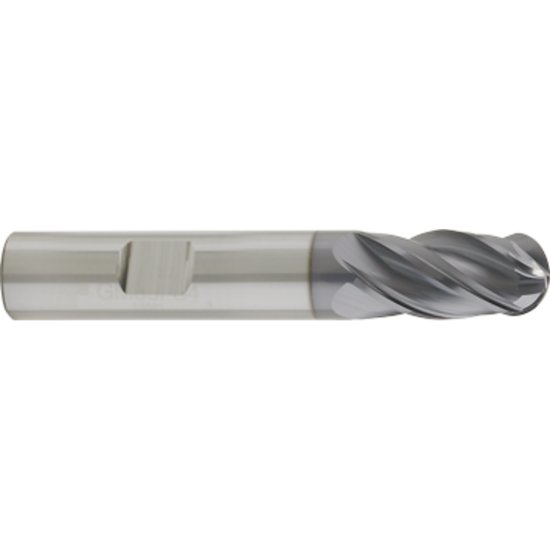

Gorilla Mill GM10B4WF Dia 1" SH 1.00 LOC 1.50 OAL 4.00 End Mill Rougher/Finisher Variable Helix Carbide TiAlN Single End Ball NoseBall

Part Number: GOR10043 ISO: GM10B4WF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1134897
$378.08
GORILLA MILL 10043 DIA 1" SH 1.00 LOC 1.50 OAL 4.00 End Mill Rougher/Finisher Variable Helix Carbide TiAlN Single End Ball NoseBall GORILLA MILL Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating TiAlN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Rougher/Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
