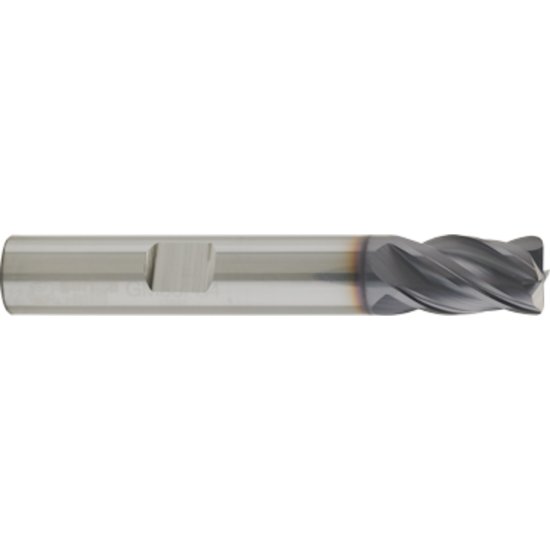

Gorilla Mill GM1000mmR4030WF Dia 10mm SH 0.3937 LOC 0.8661 OAL 2.7559 End Mill Carbide TiAlN Single End Corner Radius0.0118 0.30mm

Part Number: GOR10035 ISO: GM1000MMR4030WF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: GORILLA MILL
SKU: 1194404
$0.00
GORILLA MILL 10035 DIA 10MM SH 0.3937 LOC 0.8661 OAL 2.7559 End Mill Carbide TiAlN Single End Corner Radius0.0118 0.30MM GORILLA MILL Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating TiAlN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 2.7560 70.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 4
Tool Dia 0.3937 10.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8660 22.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Rougher/Finisher
Single/Double End Single End
Corner Radius 0.0118 0.30MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
